Septic Tanks and Accessories
From standard residential septic and holding tanks to filters, risers, drainage fabric, and a full range of tank accessories, we manufacture and stock everything you need for a complete septic system. All precast products are proudly produced at our Prescott facility, built to meet Ontario Building Code requirements and CSA standards.
Septic Tanks & Holding Tanks
All tanks meet the Ontario Building Code Requirements and CSA Standard B 66-05.
All tank lids are equipped with PolyLok Access Risers cast into them, providing a 3" riser overhang beyond the tank.

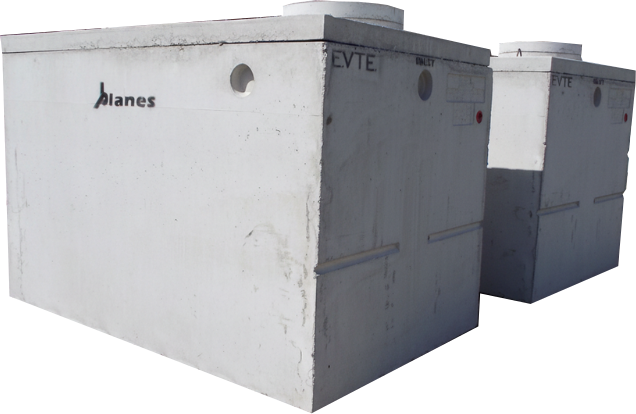

Septic Tanks
Holding Tanks

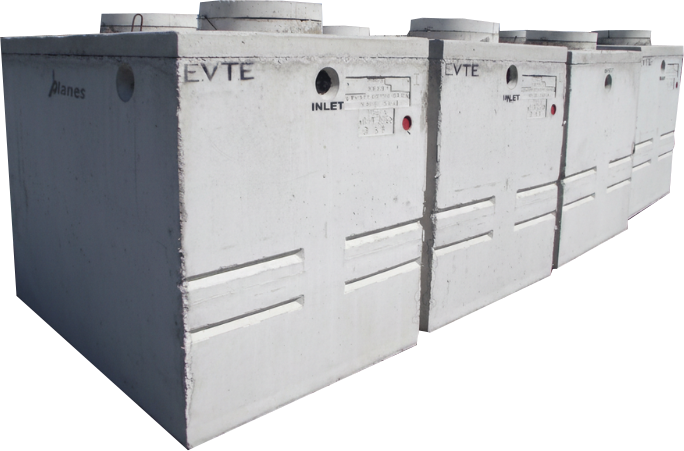

Holding Tanks (Installed)

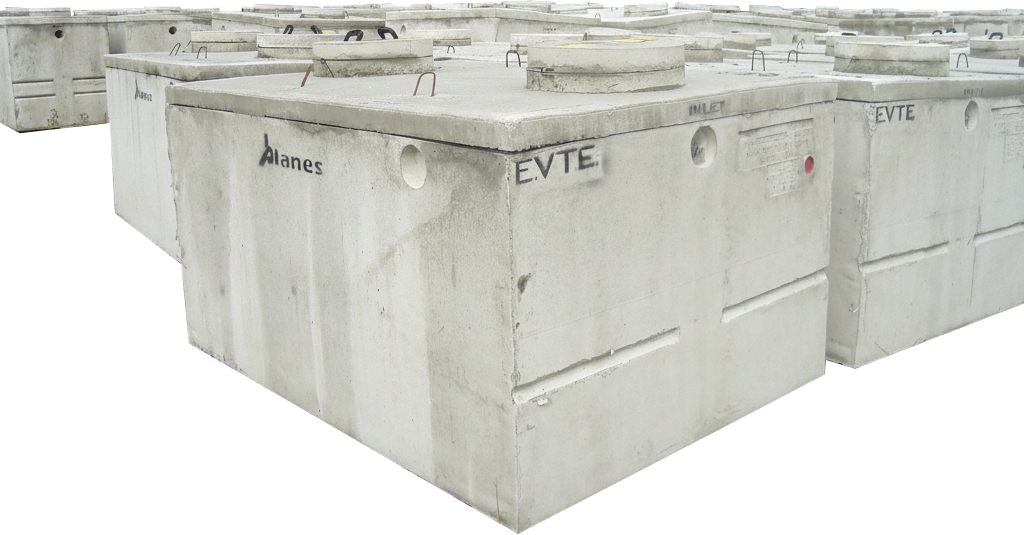

Septic Tank

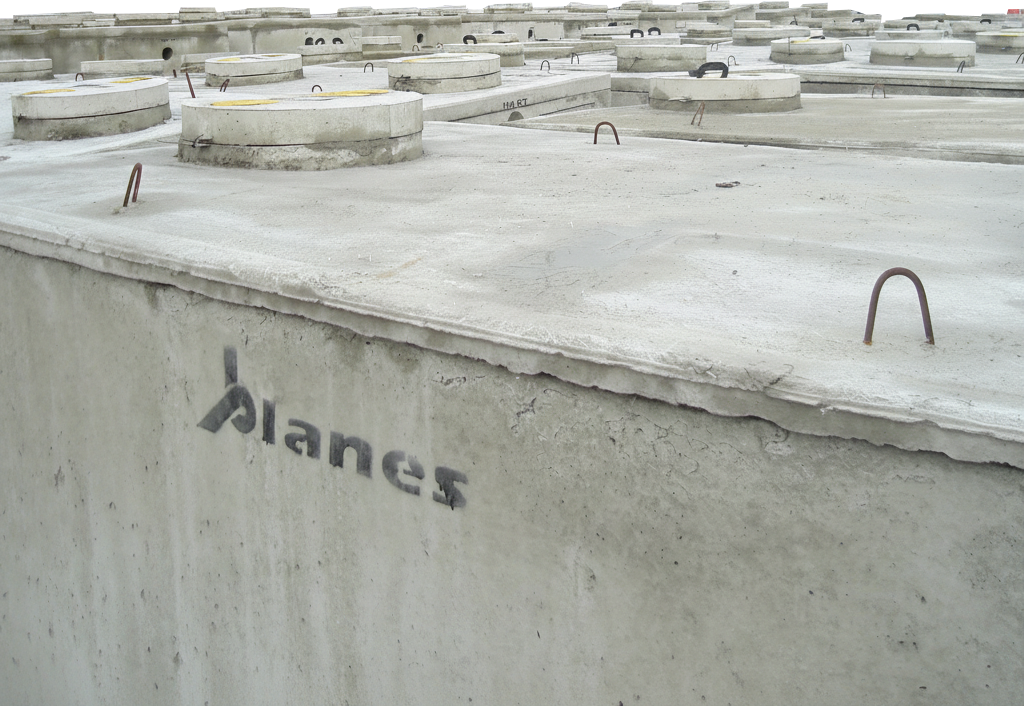

Septic Tank (Overview)

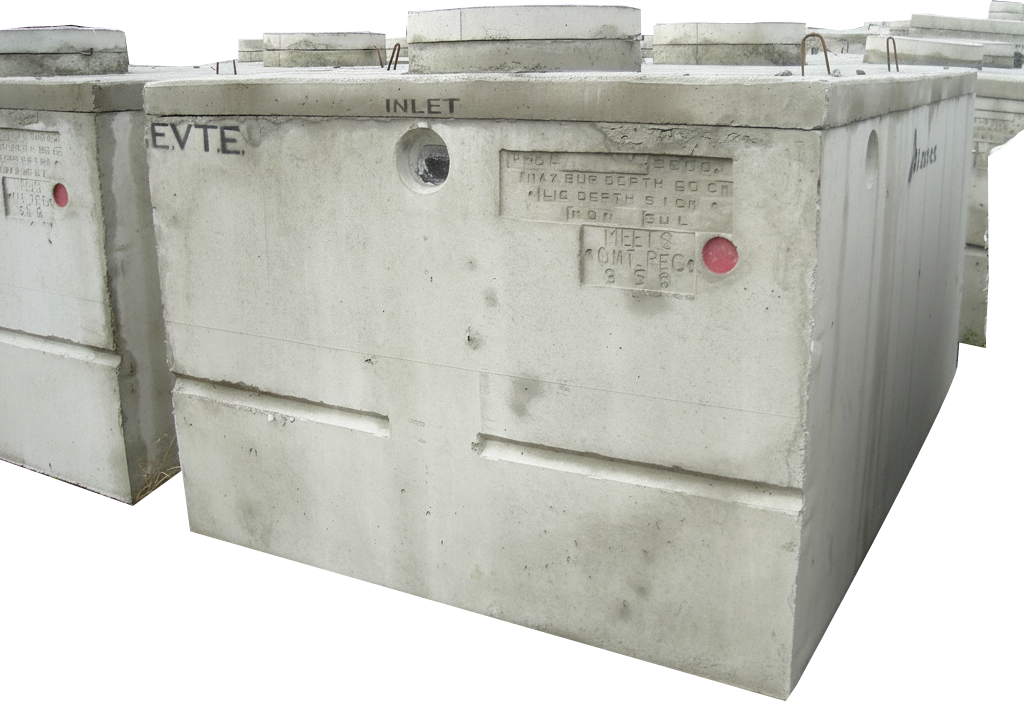

Septic Tank

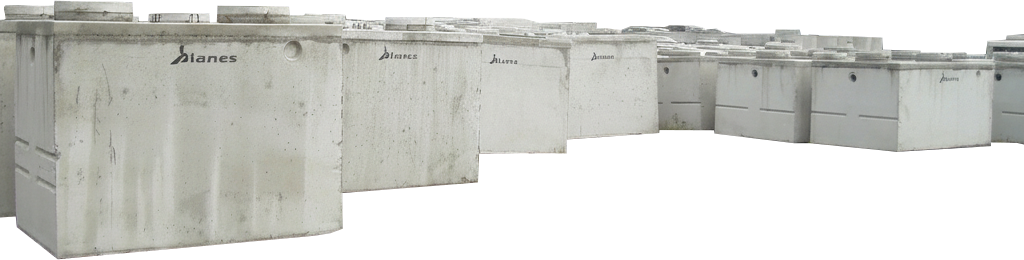

Septic Tank
Standard Tank Sizes
| Product | Length | Width | Height | Bottom of Tank to Bottom of Inlet | Bottom of Tank to Bottom of Outlet |
|---|---|---|---|---|---|
| 3600 L (800gal) Reg | 7'6" | 5' | 5'6" | 4'8" | 4'6" |
| 3600 L (800gal) Low | 8'6" | 6' | 4'3" | 3'6" | 3'4" |
| 4500 L (1000gal) Reg | 8'6" | 5'6" | 5'5" | 4'7" | 4'5" |
| 4500 L (1000gal) Low | 10'1" | 6'5" | 4'7" | 3'9" | 3'7" |
| 5600 L (1250gal) Low | 10'1" | 6'5" | 5'4" | 4'6" | 4'4" |
| 6800 L (1500gal) Low | 12'10" | 7' | 4'11" | 4'2" | 4' |
| 9000 L (2000gal) Holding | 12'10" | 7' | 4'11" | 4'11" | 4'9" |
| 9000 L (2000gal) Low | 16' | 8'6" | 4'8" | 3'8" | 3'6" |
| 10,100 L (2250gal) Low | 16' | 8'6" | 4'8" | 3'8" | 3'6" |
| 11,250 L (2500gal) Holding | 16' | 8'6" | 4'8" | 3'11" | 3'9" |
| 14,000 L (3000gal) Septic/Holding | 16' | 8'6" | 5'9" | 4'11" | 4'9" |
| 18,000 L (4000gal) Septic/Holding | 16' | 8'6" | 6'11" | 6'1" | 5'11" |
| 23,000 L (5000gal) Septic/Holding | 16' | 8'6" | 8'5" | 7'5" | 7'3" |
Septic Accessories
We carry a complete range of septic accessories — from effluent filters and drainage fabric to Polylok risers, lids, pipes, and fittings — everything you need for installation, maintenance, and long-term system performance.
Septic Filters
We stock two popular effluent filters for septic tanks—both reliable, trusted components from manufacturers known for proven quality. We offer the EF-6 Effluent Filter from Tuf-Tite and the PL 122 Effluent Filter with Ball from PolyLok.
EF-6 (overview)
EF-6 (detail)
PL-122 (detail)
PL-122 (overview)
Key Differences
| Feature | PL-122 (PolyLok) | EF-6 (Tuf-Tite) |
|---|---|---|
| Designed flow / system size | Ideal for residential or small commercial, up to ~3,000 GPD (gallons per day) per manufacturer. | Higher-capacity "Commercial Series" designed for larger systems, rated at ~1,500 GPD in some specs but with a larger filtration surface. |
| Filtration surface length | ~122 linear feet of slot length. | ~244 linear feet of slot length—so effectively about double the filtration surface. |
| Special features | Automatic shut-off ball (prevents solids escaping during servicing) + gas-deflector ball built in. | Molded-in solids/gas deflector, and certified to ANSI/NSF Standard 46 (per advertised spec). |
| Typical applications | Residential homes or smaller wastewater systems where moderate flow and maintenance intervals suffice. | Larger homes, multi-unit/multi-family systems, small commercial installations where higher flow and larger capacity are needed. |
| Cost/weight/size considerations | Slightly more compact; higher suitability for smaller installations; easier to service. | Larger capacity means potentially larger size/cost; best used where system demand justifies it. |
What this means for selection
- If you have a standard residential septic tank or a smaller installation, the PL-122 offers excellent fine-filtration and smart features (the shut-off ball) at a suitable capacity.
- If you're servicing a larger flow application (e.g., multi-unit dwelling, commercial property, or a higher-capacity system), the EF-6 gives you significantly more filtration surface and is built for heavier duty use.
- From a maintenance standpoint: The larger filtration surface of the EF-6 means longer intervals (or more margin) between servicing in high-flow contexts.
- Conversely, installing an EF-6 in a small-flow system may be overkill (cost, size, servicing effort) when a PL-122 suffices.
Drainage Fabric for Septic Beds
We carry the Mirafi 140N geotextile fabric for septic bed installations—trusted as one of the best-performing non-woven fabrics in the industry. Sourced through Great North Hardscape, this material delivers the reliability, strength, and drainage performance required for long-lasting septic systems.
Roll (in stock)
Mirafi 140N
Geotextile fabric
Product Overview
The Mirafi 140N / NC is a heavier-duty non-woven polypropylene geotextile, engineered for civil and construction applications where high strength, drainage, and soil-separation performance are required. It easily conforms to ground or trench surfaces for efficient installation.
Key Features
- High puncture and tear resistance to withstand installation stresses.
- Excellent drainage: high permittivity enables significant water flow while retaining soil.
- Chemically stable for use in a wide range of aggressive environments.
- Cost-effective alternative to graded-aggregate filters in many applications.
Specifications
- 3 ft x 100 ft rolls in stock @ 12 lbs per roll
Applications
Ideal for trench drains, sub-drain layers, road base separation, and other heavy-duty drainage or filtration installations where non-woven geotextile performance is required.
Polylok
Polylok Septic-Tank Access & Retrofit Solutions — We're proud to offer Polylok's industry-leading range of access products, including 20″ and 24″ diameter retrofit solutions for septic-tank lids and risers. Whether you're updating an existing system or installing new infrastructure, our team can help you select the right Polylok components for your needs — and if your project calls for something outside our standard stock, we're able to special order any item from the full Polylok catalogue.
With durable construction, precise fit-up, and innovative design, Polylok's access systems deliver reliable performance in demanding wastewater and septic applications. Let us help you find the right retrofit solution for your tank access, meet code requirements, and ensure long-term ease of service.
What we can do
- Help select the right parts for retrofits or new installs
- Support code requirements and long-term serviceability
- Special order anything from the full Polylok catalogue
Risers
Polylok has combined all the best features of concrete and plastic risers to create their patented riser system. Polylok risers hold their shape, are stackable, screw together, and are water and airtight. Structural ribs inside prevent frost from adhering to the riser in frost prone areas.
Risers
Risers (detail)
Stackable system
- Watertight and airtight
- Allows septic tank to be easily vacuum or water tested
- Highest UV-Ray Protection on the market today
- Easy to bring septic access to grade
- Made of high density Polyethylene which won't shatter like some Polypropylene risers
- Tear off riser ring to eliminate frost problems
- Structural ribs inside prevent frost from adhering to the riser in frost prone areas
Why it matters
Better sealing, easier access, and more durable performance in frost-prone environments—built for long-term serviceability.
Adapter Ring / Plate
The Adapter Ring is ideal for retrofitting existing septic tanks and can be secured with ease. The Adapter Ring is made of virgin high density polyethylene.
Adapter ring
Retrofit plate
Install view
- Adapter ring accepts either 20" or 24" riser
- Covers up to 25" square opening
- Save time and money with easy installation
20" and 24" Riser Covers (Lids)
Ideal for use on septic tanks with matching risers. Polylok covers are made of HDPE with the highest UV protection on the market today. These covers will withstand normal residential traffic.
Covers (overview)
Covers (detail)
- Skid resistance surface
- Available in green
- Includes two recessed handles for easy removal
- Highest level of UV protection included
- Special order a foam gasket for airtight and watertight applications
Tank Accessories
We offer a full range of septic and holding tank accessories sourced from trusted, reputable local manufacturers. From high-quality lids and risers (Polylok and Concrete) to filters, pipes, and fittings, we supply reliable components that make installation, maintenance, and repairs easier and more efficient.
Round lids
Square lids

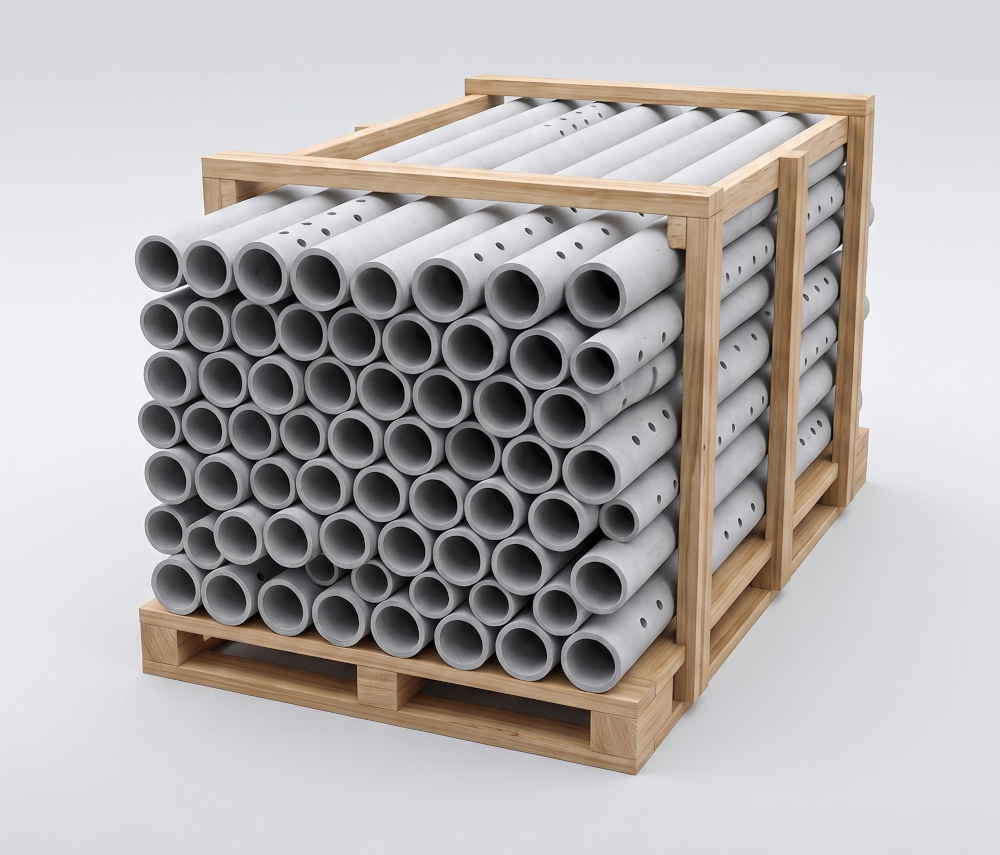

Perforated pipe

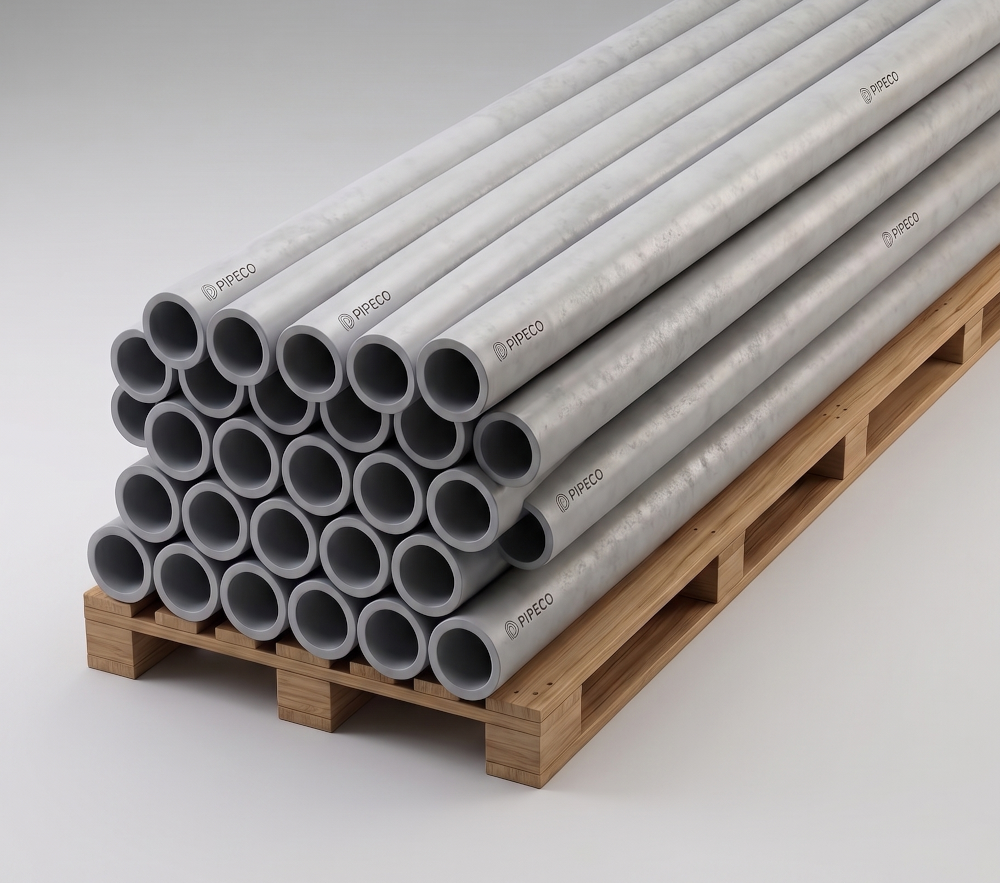

Solid pipe
6" access riser
Equalizer end cap
12" access riser
Access riser
Our accessory inventory includes
| Tank Accessories |
|---|
| Small Distribution Box |
| Large Distribution Box |
| 24" Round Lid |
| Concrete Access Riser in 6 or 12" tall |
| Manhole Cover (all sizes - tapered) |
| Retro Lid with Riser |
| Holding Tank Alarm 30' Cord |
| Holding Tank Alarm 50' Cord |
| Holding Tank Alarm 100' Cord |
| 1" Sealant (14' Roll) |
| ½" Sealant (21' Roll) |
| Green Mastic Sealant (14.5' Roll) |
| Equalizer End Cap MultiPort and Chambers |
| 36" Mirafi Filter Cloth (100ft) |
| Baffle |
Plastic Pipe and Fittings
| Plastic Pipe and Fittings |
|---|
| 3" Perforated or Solid per/ft |
| 3" 45 Degree Elbow |
| 3" 90 Degree Elbow |
| 3" End Cap |
| 3" Tee |
| 4" Perforated or Solid per/ft |
| 4" 45 Degree Elbow |
| 4" 90 Degree Elbow |
| 4" Tee |
| 4" to 3" Reducer |
