Our manufacturing plant in Prescott produces our full range of regular stock items, including a variety of residential and commercial construction products.
With consistent output and quality-focused production, the Prescott team ensures we’re fully equipped to support projects of every size throughout the region.

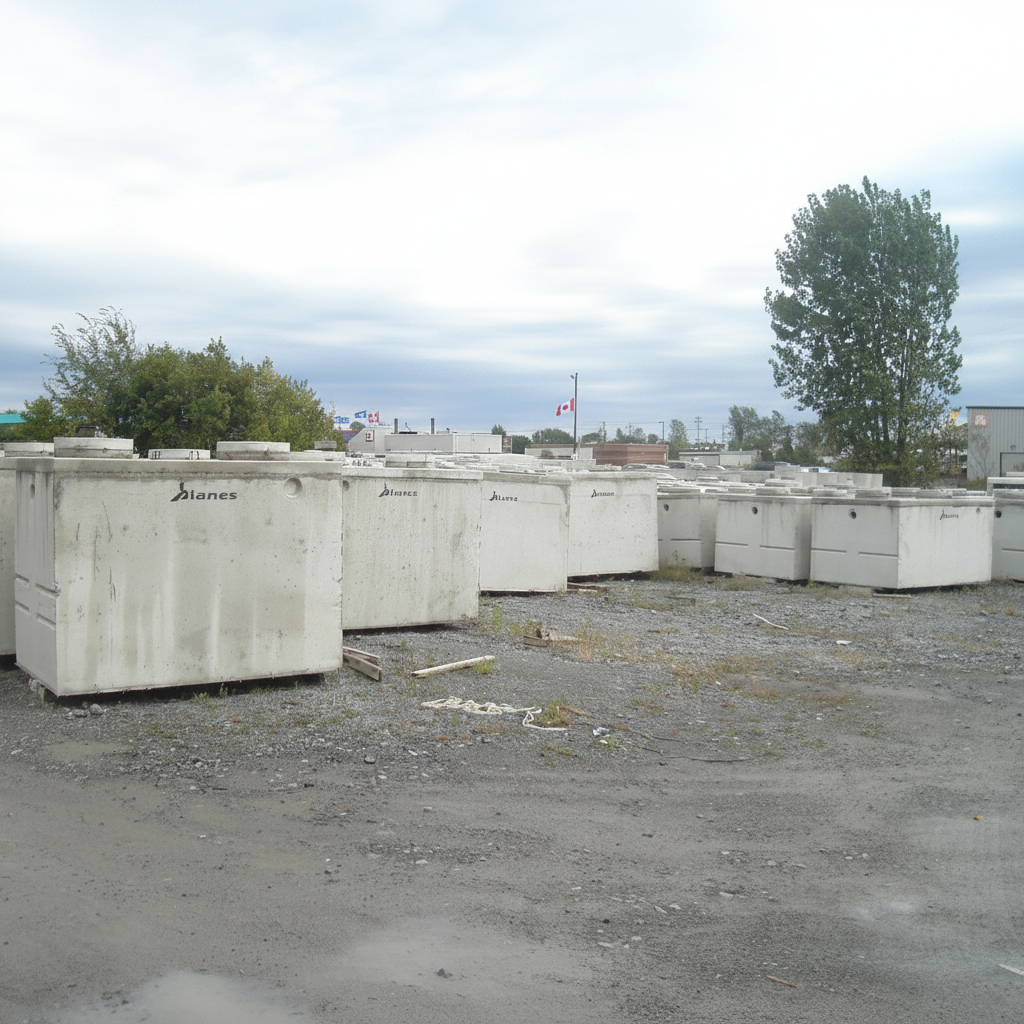

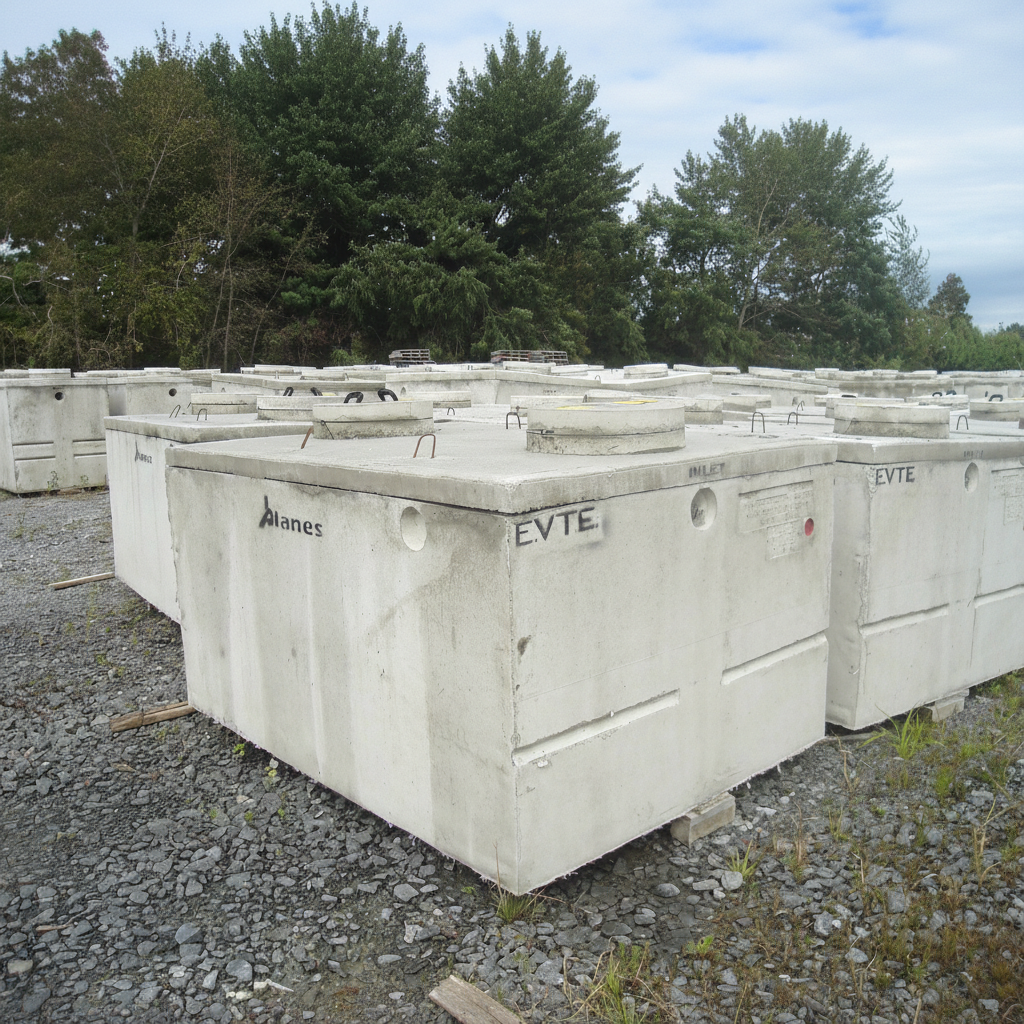

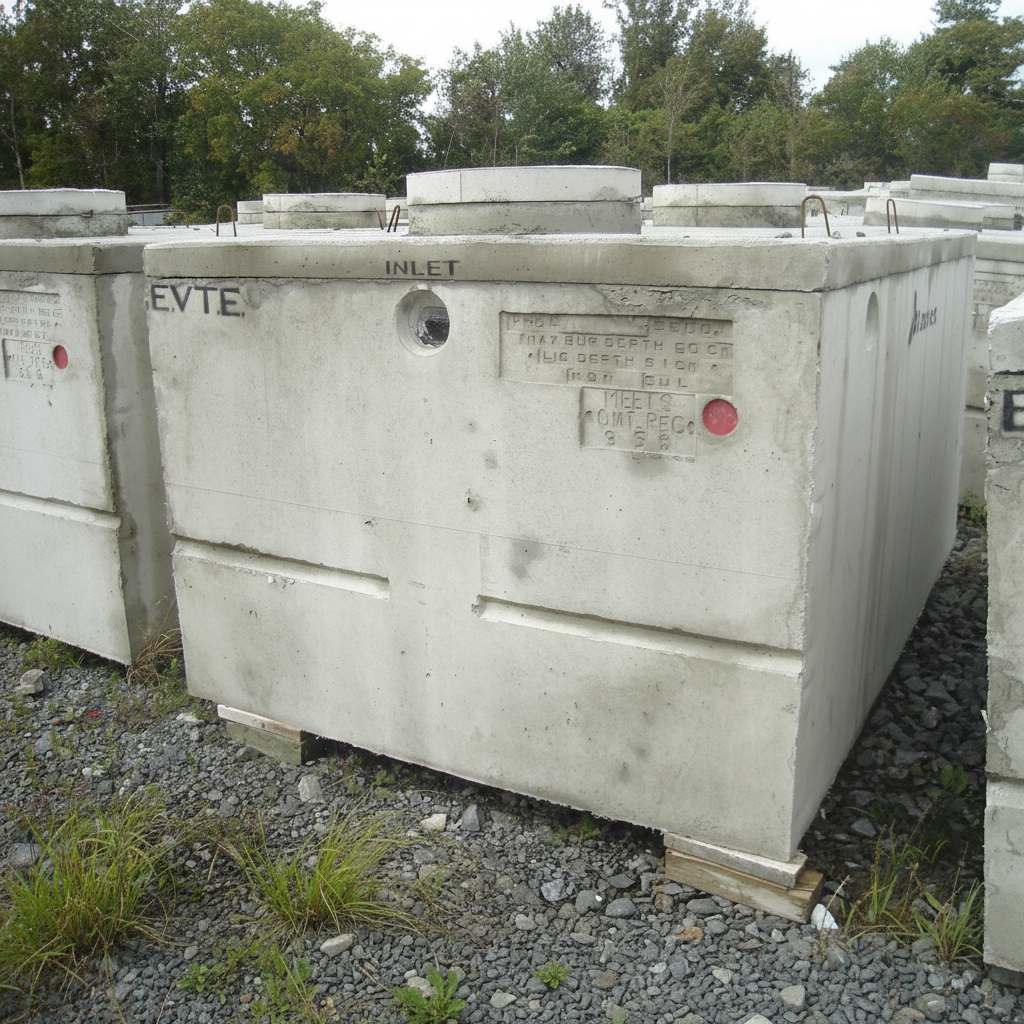

Septic Tanks & Holding Tanks
All tanks meet the Ontario Building Code Requirements and CSA Standard B 66-05.
All tank lids are equipped with PolyLok Access Risers cast into them, providing a 3” riser overhang beyond the tank.
Septic Tanks
Holding Tanks

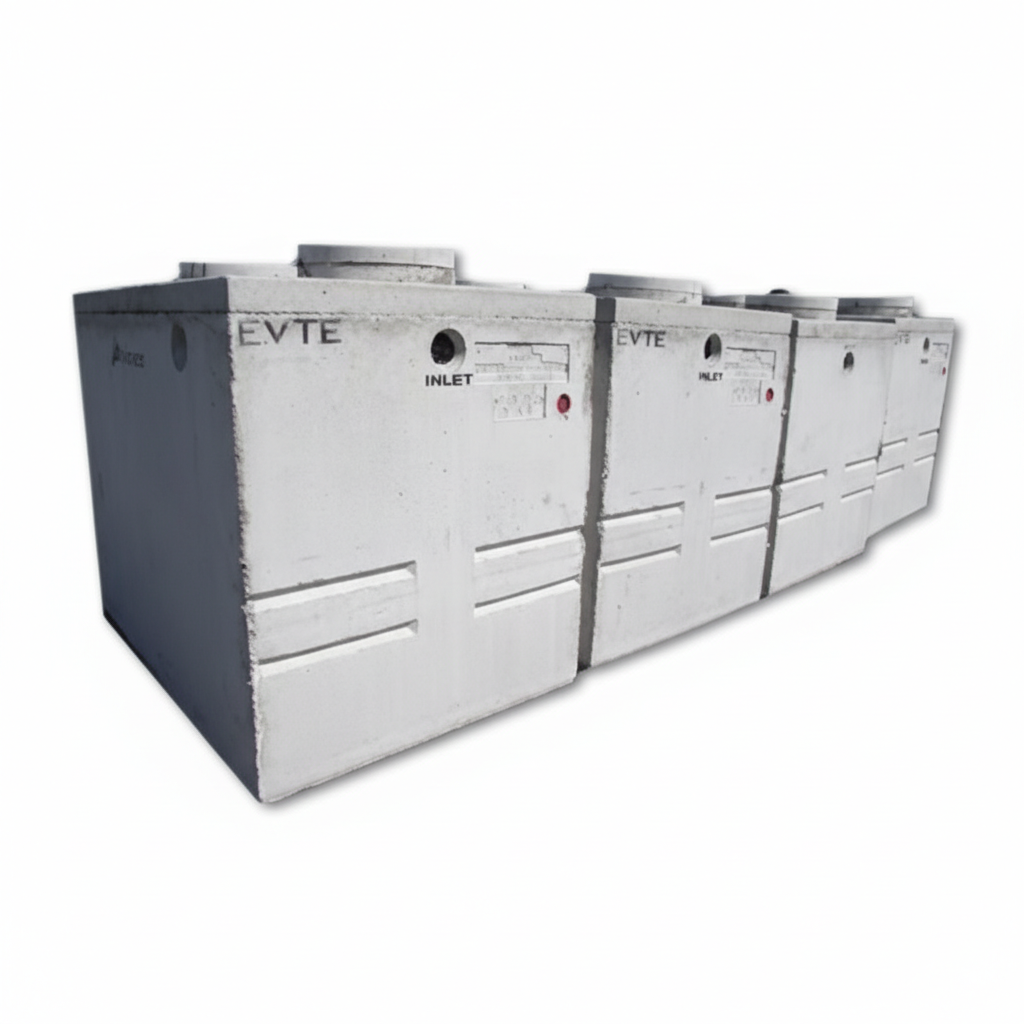

Holding Tanks (Installed)
Septic Tank

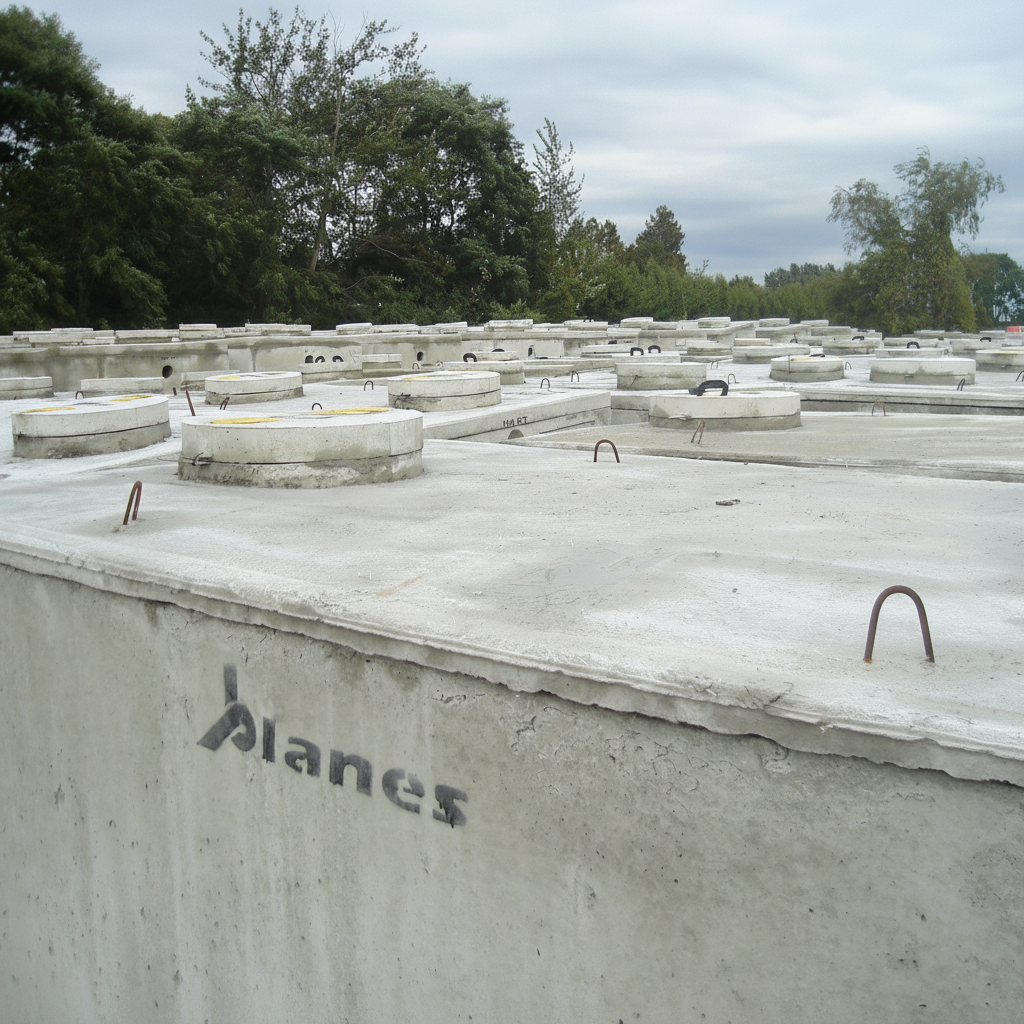

Septic Tank (Overview)
Septic Tank
Septic Tank
Product
Length
Width
Height
Bottom of Tank to Bottom of Inlet
Bottom of Tank to Bottom of Outlet
3600 L (800gal) Reg
7’6”
5’
5’6”
4’8”
4’6”
3600 L (800gal) Low
8’6”
6’
4’3”
3’6”
3’4”
4500 L (1000gal) Reg
8’6”
5’6”
5’5”
4’7”
4’5”
4500 L (1000gal) Low
10’1”
6’5”
4’7”
3’9”
3’7”
5600 L (1250gal) Low
10’1”
6’5”
5’4”
4’6”
4’4”
6800 L (1500gal) Low
12’10”
7’
4’11”
4’2”
4’
9000 L (2000gal) Holding
12’10”
7’
4’11”
4’11”
4’9”
9000 L (2000gal) Low
16’
8’6”
4’8”
3’8”
3’6”
10,100 L (2250gal) Low
16’
8’6”
4’8”
3’8”
3’6”
11,250 L (2500gal) Holding
16’
8’6”
4’8”
3’11”
3’9”
14,000 L (3000gal) Septic/Holding
16’
8’6”
5’9”
4’11”
4’9”
18,000 L (4000gal) Septic/Holding
16’
8’6”
6’11”
6’1”
5’11”
23,000 L (5000gal) Septic/Holding
16’
8’6”
8’5”
7’5”
7’3”

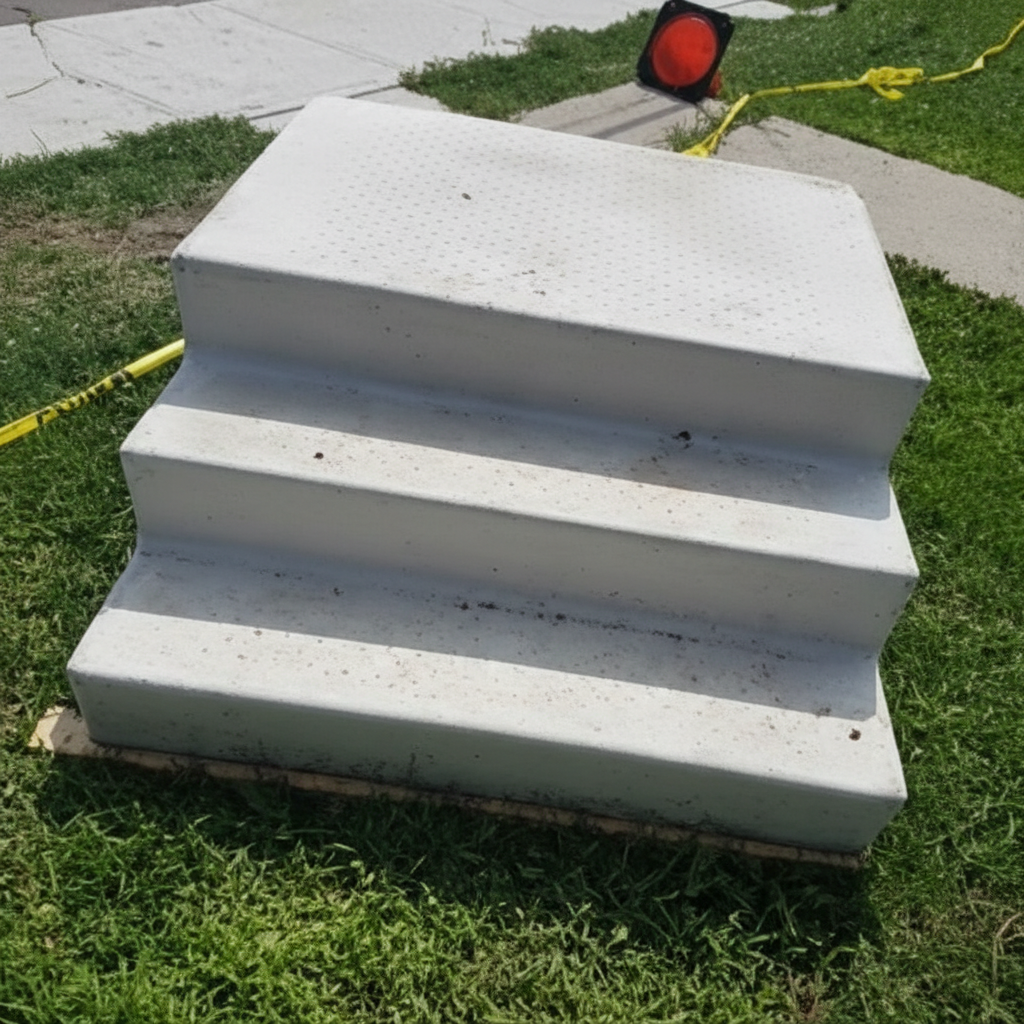

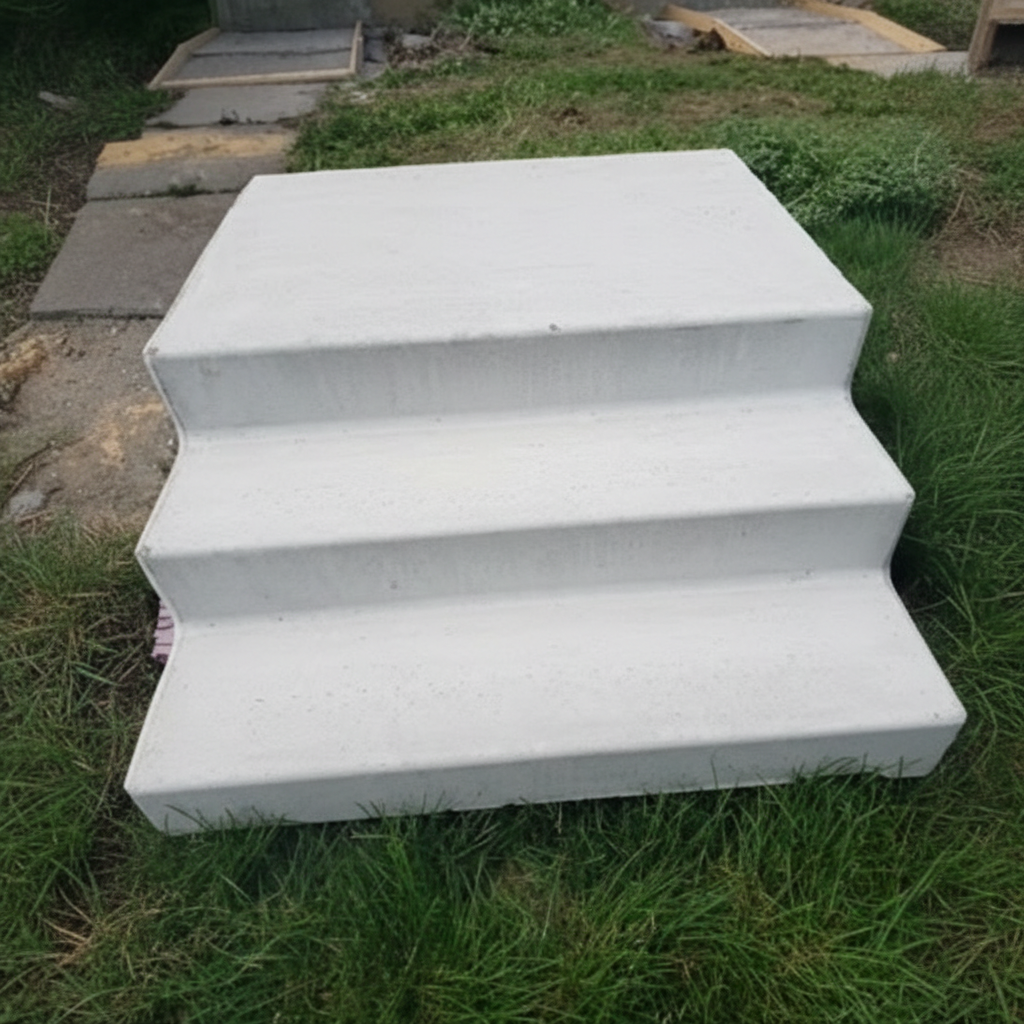

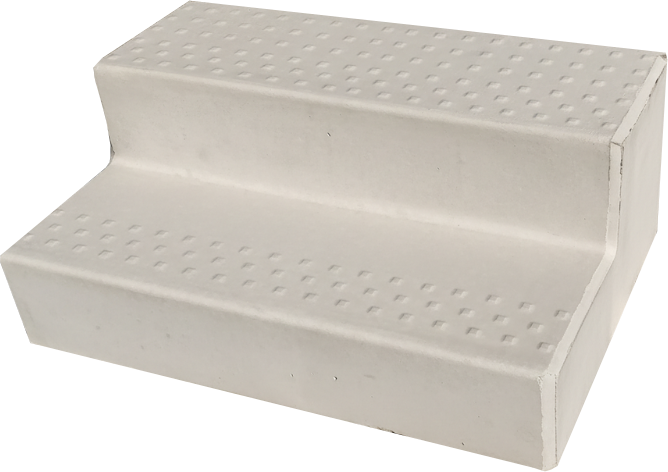

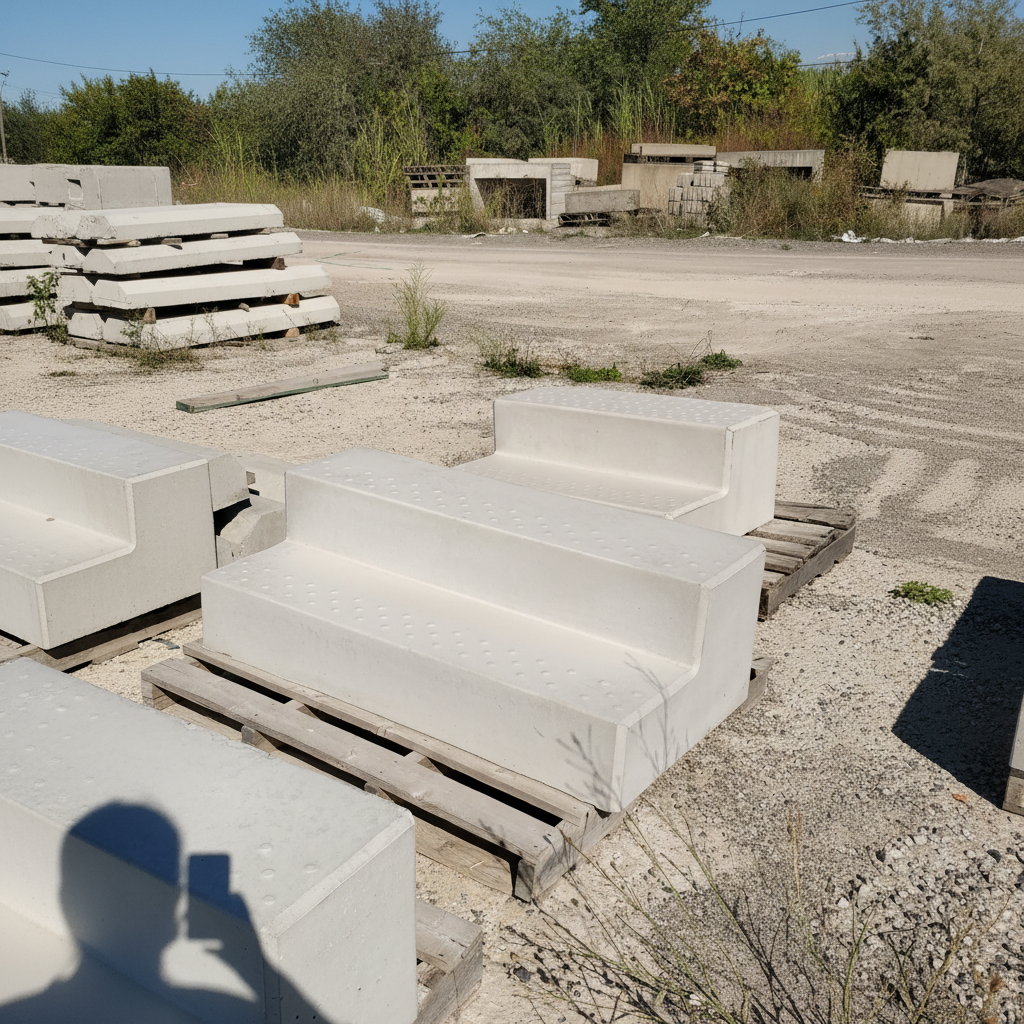

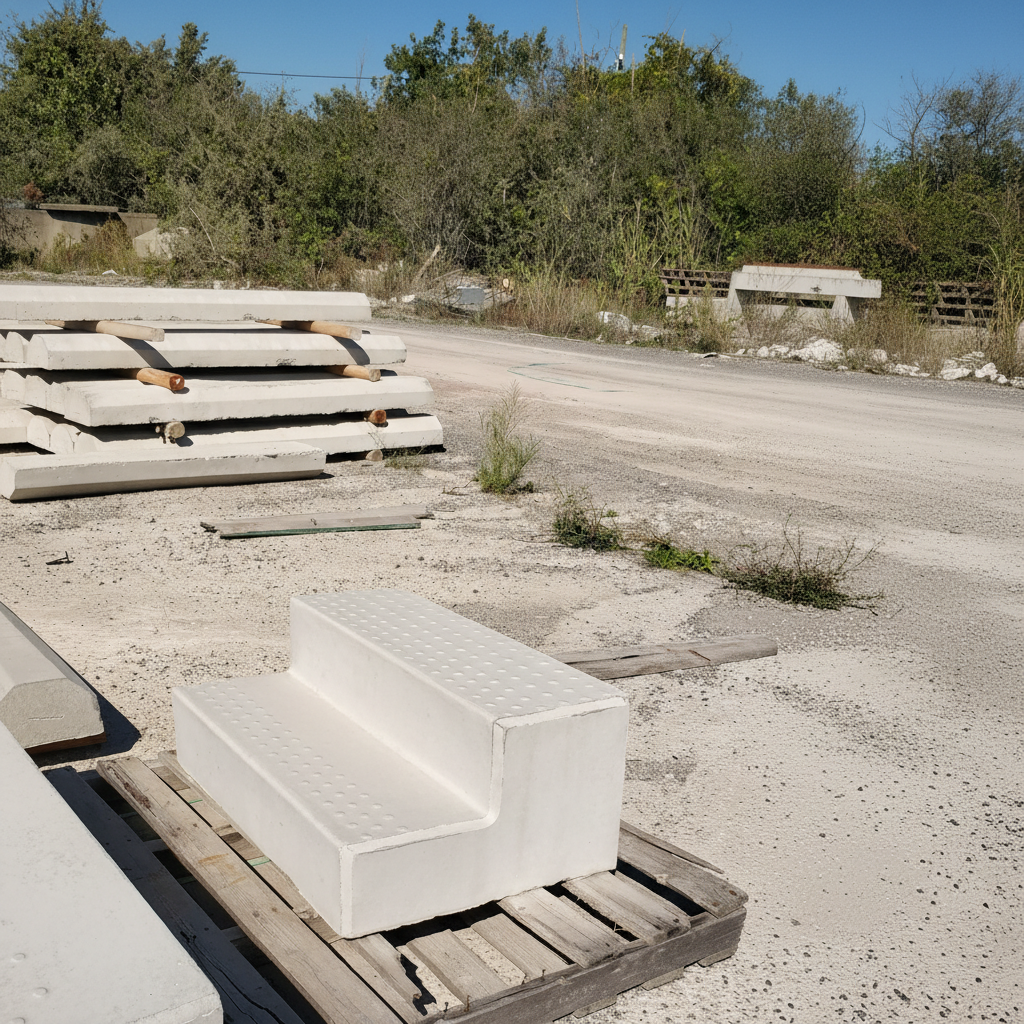

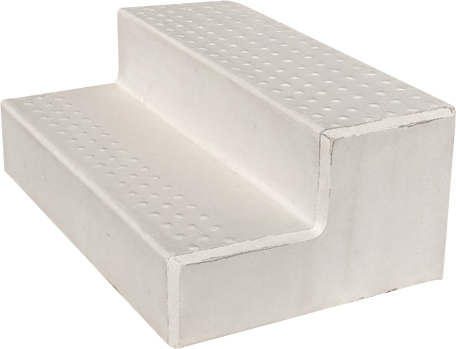

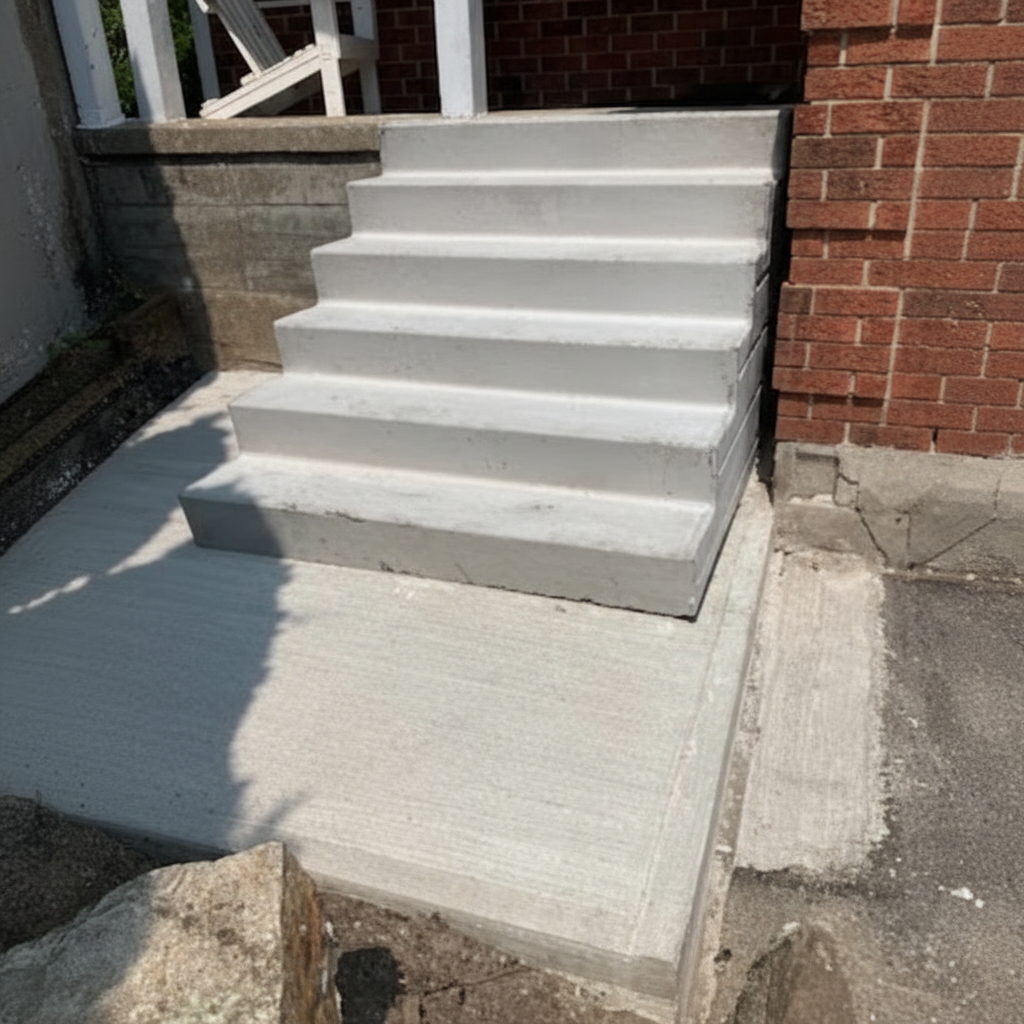

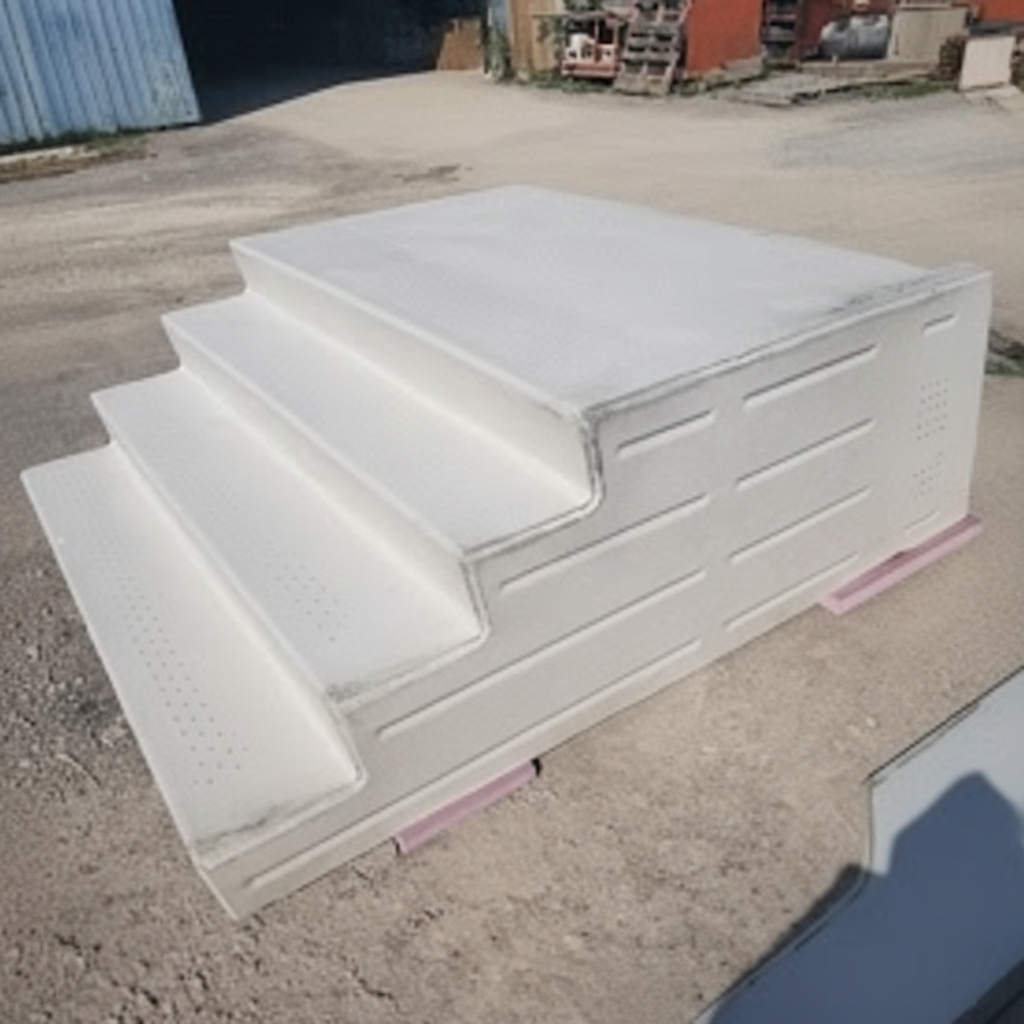

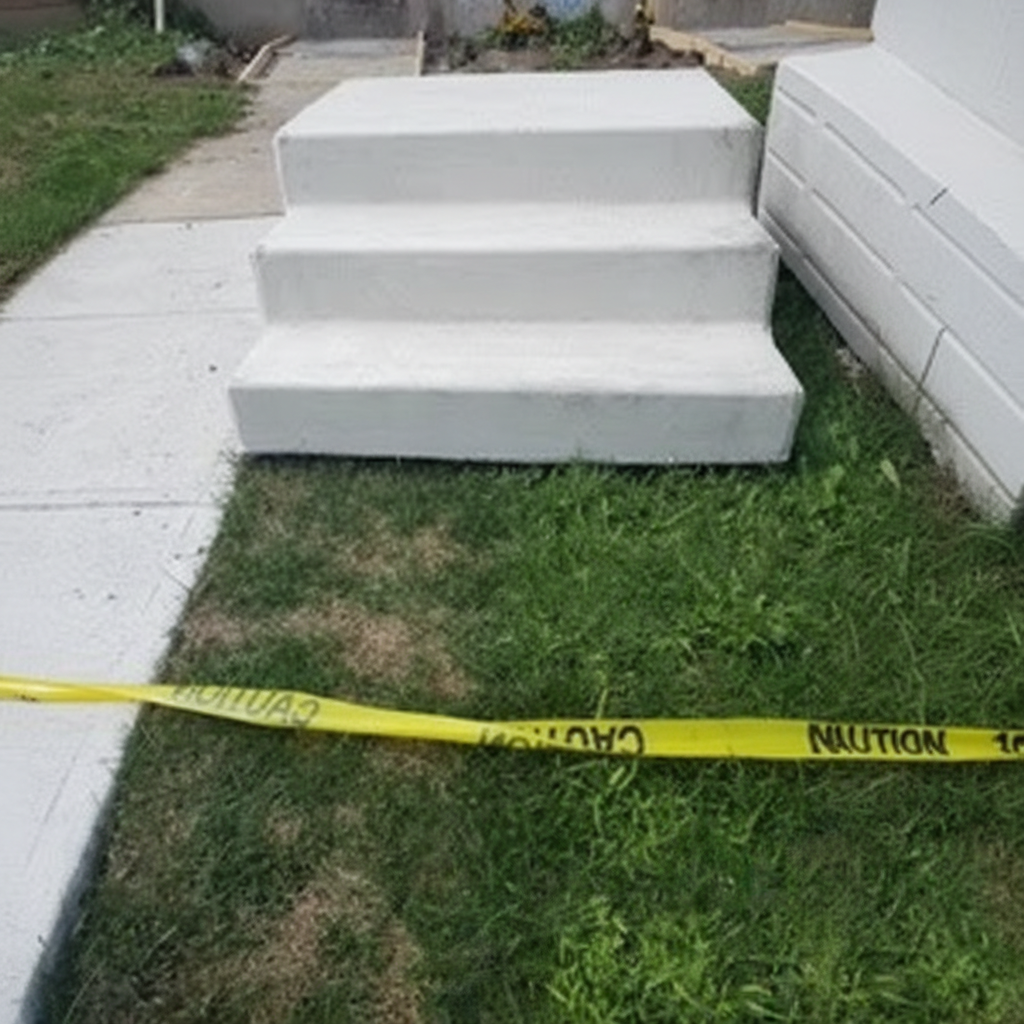

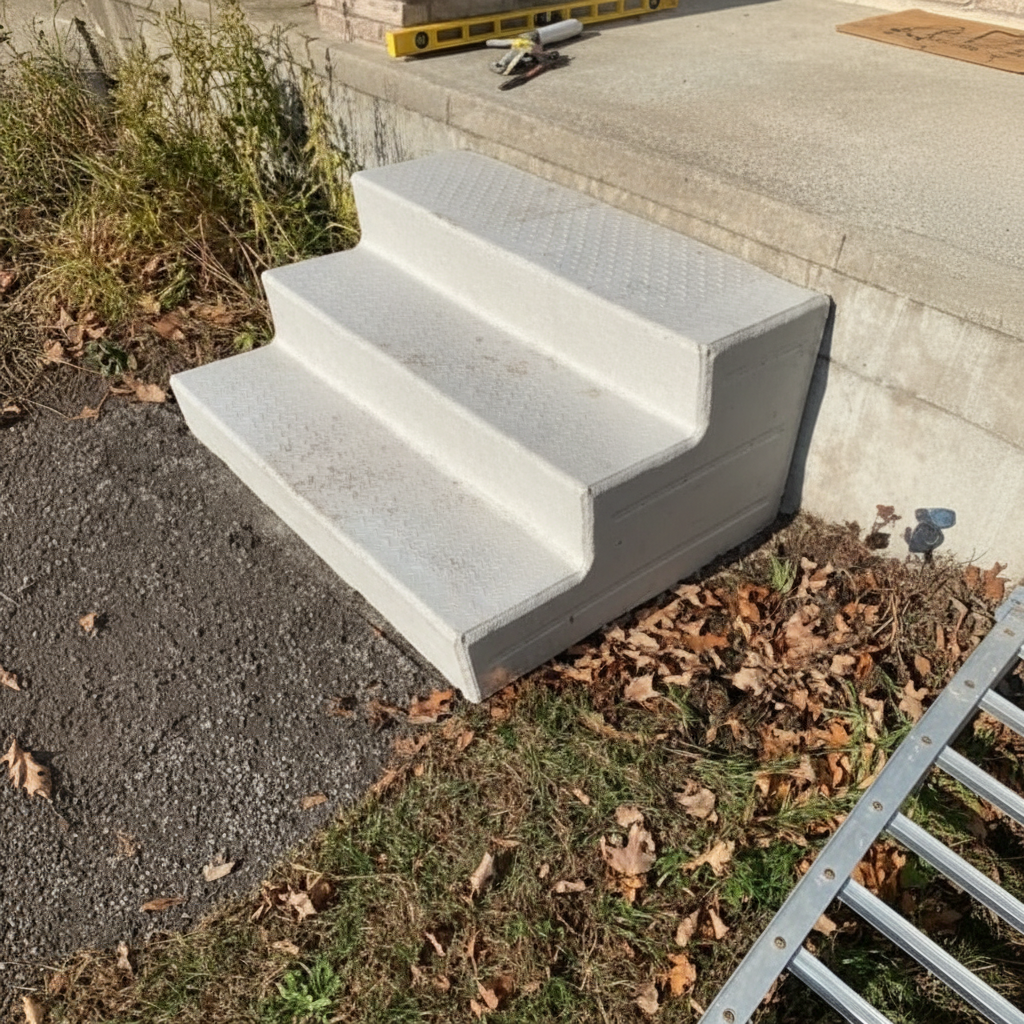

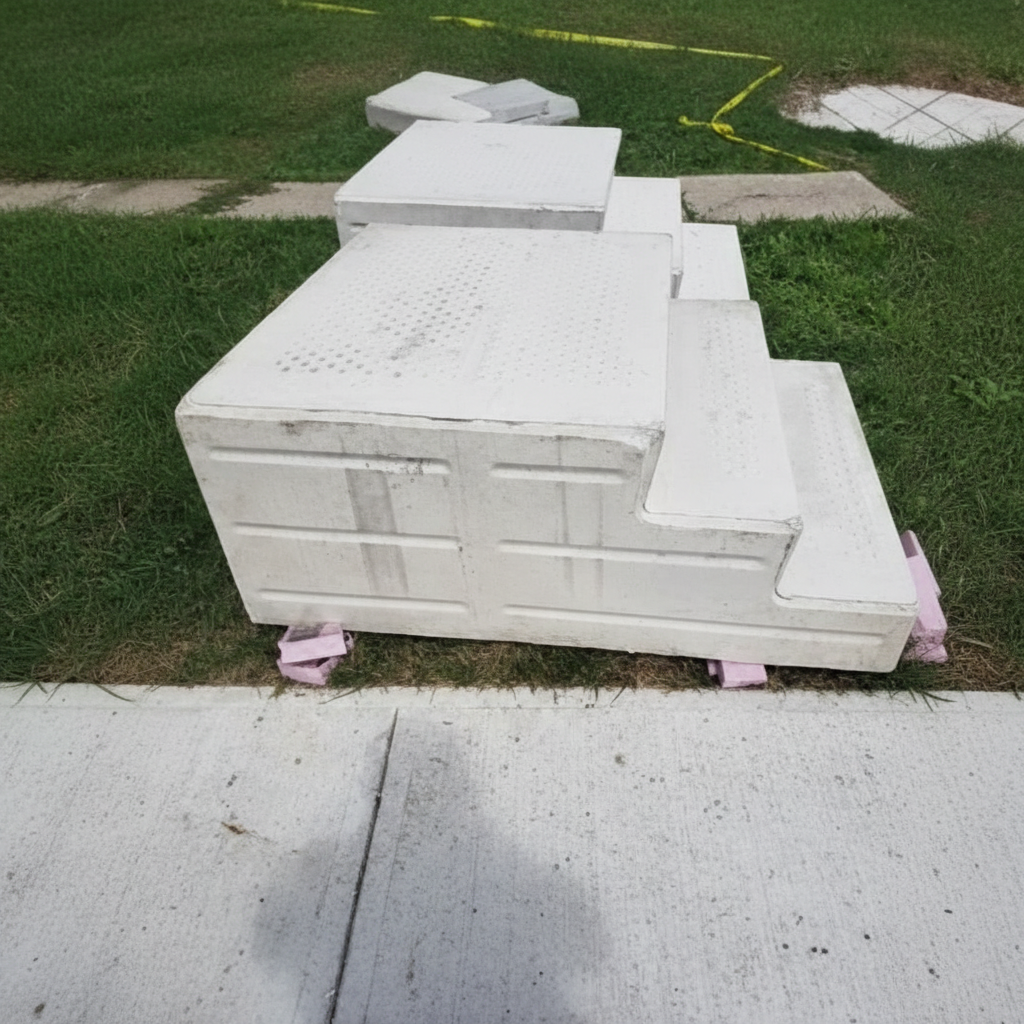

Steps & Steps with Porches
With over 30 years of local manufacturing experience, our concrete precast steps are proudly produced at our Prescott facility for strength, durability, and
consistent quality. We stock our most popular sizes at both locations for fast, reliable access to the products your project depends on.
Steps
Steps
Steps
Steps
Steps
Steps
Steps
Steps
Steps
Steps
General Specifications
All risers are 7.5” high
All precast steps and steps with porches are fully compliant with the Ontario Building Code
Specification Sheet
Below are standard formats and sizing ranges. Contact us if you need help selecting the best configuration.
Precast Steps – Step Only
Width
Risers
Total Height
Total Depth
3’
1
7.5”
12"
3’
2
15”
24”
4’
1–6
7.5"–45”
12”–72”
5’
1–6
7.5"–45”
12”–72”
6’
1–6
7.5"–45”
12”–72”
Precast Steps with 36” Porch
Width
Risers
Total Height
Total Depth
4’
1–6
7.5"–45”
36”–96”
5’
1–6
7.5"–45”
36”–96”
6’
1–6
7.5"–45”
36”–96”
Precast Steps with 48” Porch
Width
Risers
Total Height
Total Depth
4’
1–6
7.5"–45”
48”–108”
5’
1–6
7.5"–45”
48”–108”
6’
1–6
7.5"–45”
48”–108”
Side Entrance Steps – 48” Porch
Width
Risers
Total Height
Total Depth
4’
1–6
7.5"–45”
48”–108”
Side Entrance Steps – 72” Porch
Width
Risers
Total Height
Total Depth
4’
1–6
7.5"–45”
72”–132”

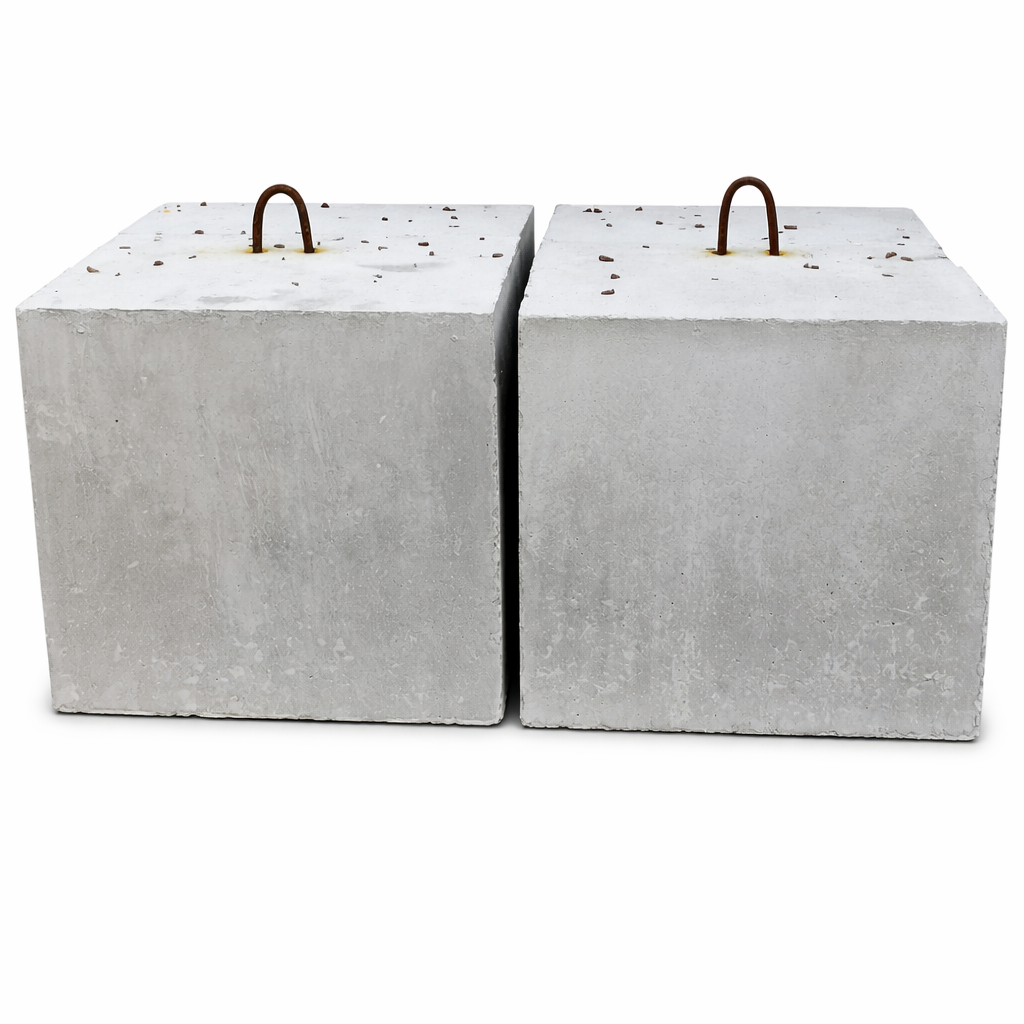

Precast Concrete Anchors
Our precast concrete anchors are designed for reliable performance across a wide range of applications. Available in circular, rectangular, and square profiles,
these heavy-duty anchors provide dependable stability for marine, construction, and utility uses.

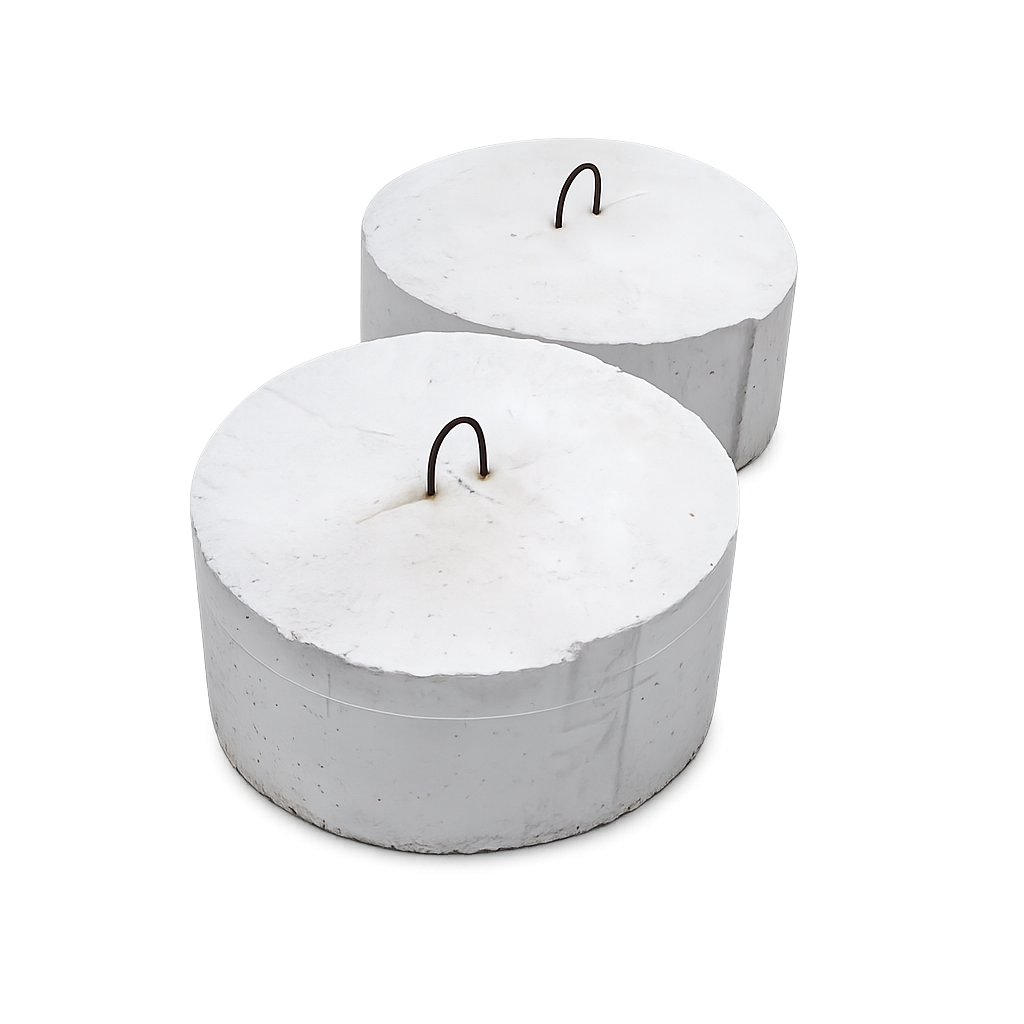

Circular Anchor
Square Anchor
Anchor Type
Size (inches)
Weight (lbs)
Circular Anchor
18 x 8
200
Circular Anchor
22 x 8
300
Circular Anchor
24 x 8
350
Circular Anchor
24 x 9
400
Circular Anchor
36 x 7
750
Rectangular Anchor
12 x 24 x 32
775
Rectangular Anchor
14 x 24 x 48
1300
Rectangular Anchor
32 x 24 x 12
775
Square Anchor
12 x 12 x 6
50
Square Anchor
12 x 12 x 7
80
Square Anchor
19 x 19 x 16
500
Square Anchor
21 x 21 x 16.5
600
Square Anchor
27 x 27 x 18
1100
Square Anchor
27 x 27 x 23.25
1400
Square Anchor
36 x 36 x 16
1740
Square Anchor
36 x 36 x 24
2600
Square Anchor
42 x 42 x 14
2050
Square Anchor
48 x 48 x 12
2300
Square Anchor
48 x 48 x 24
4600
Square Anchor
48 x 48 x 30
5800
Precast Regular Stock

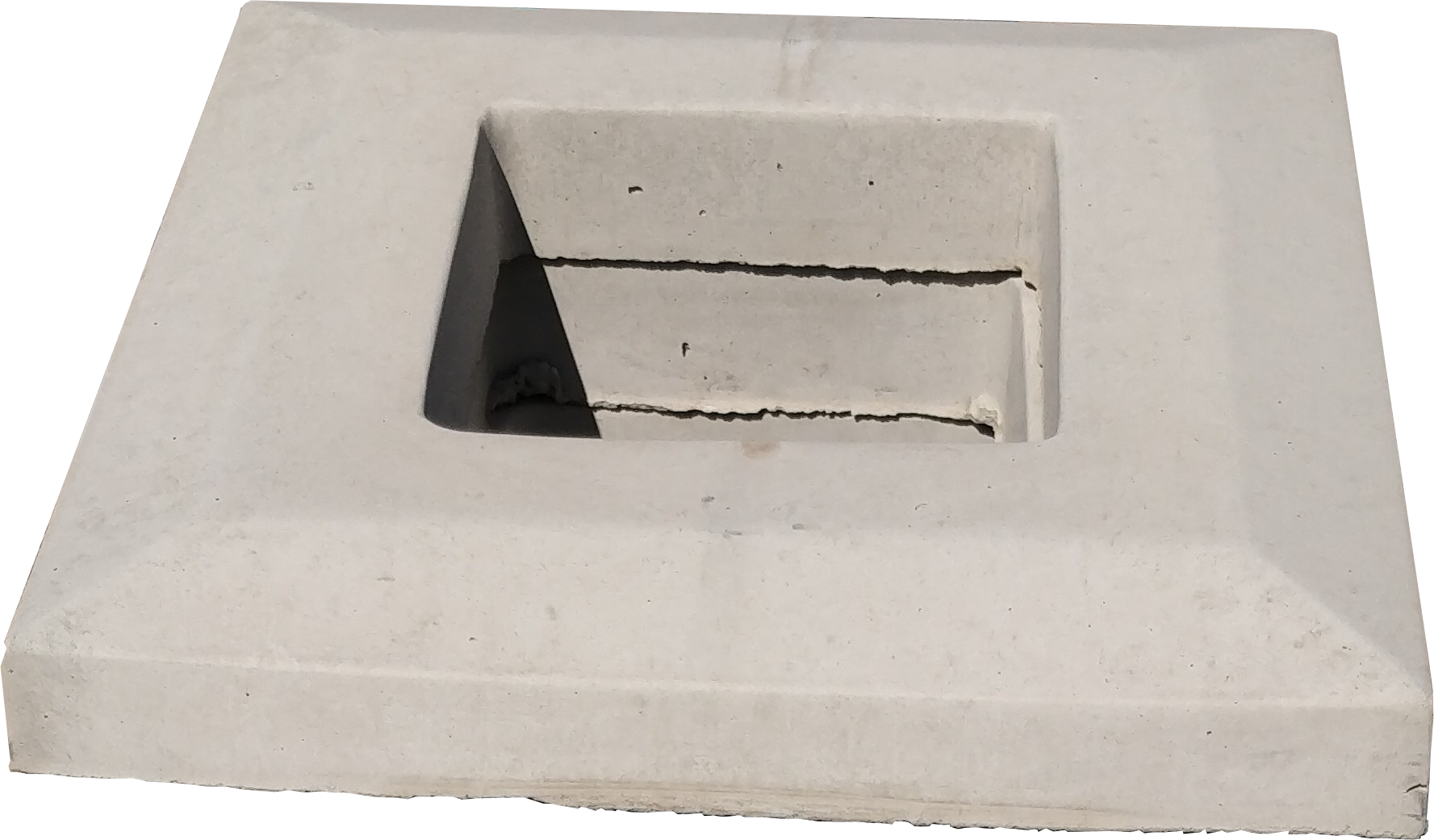

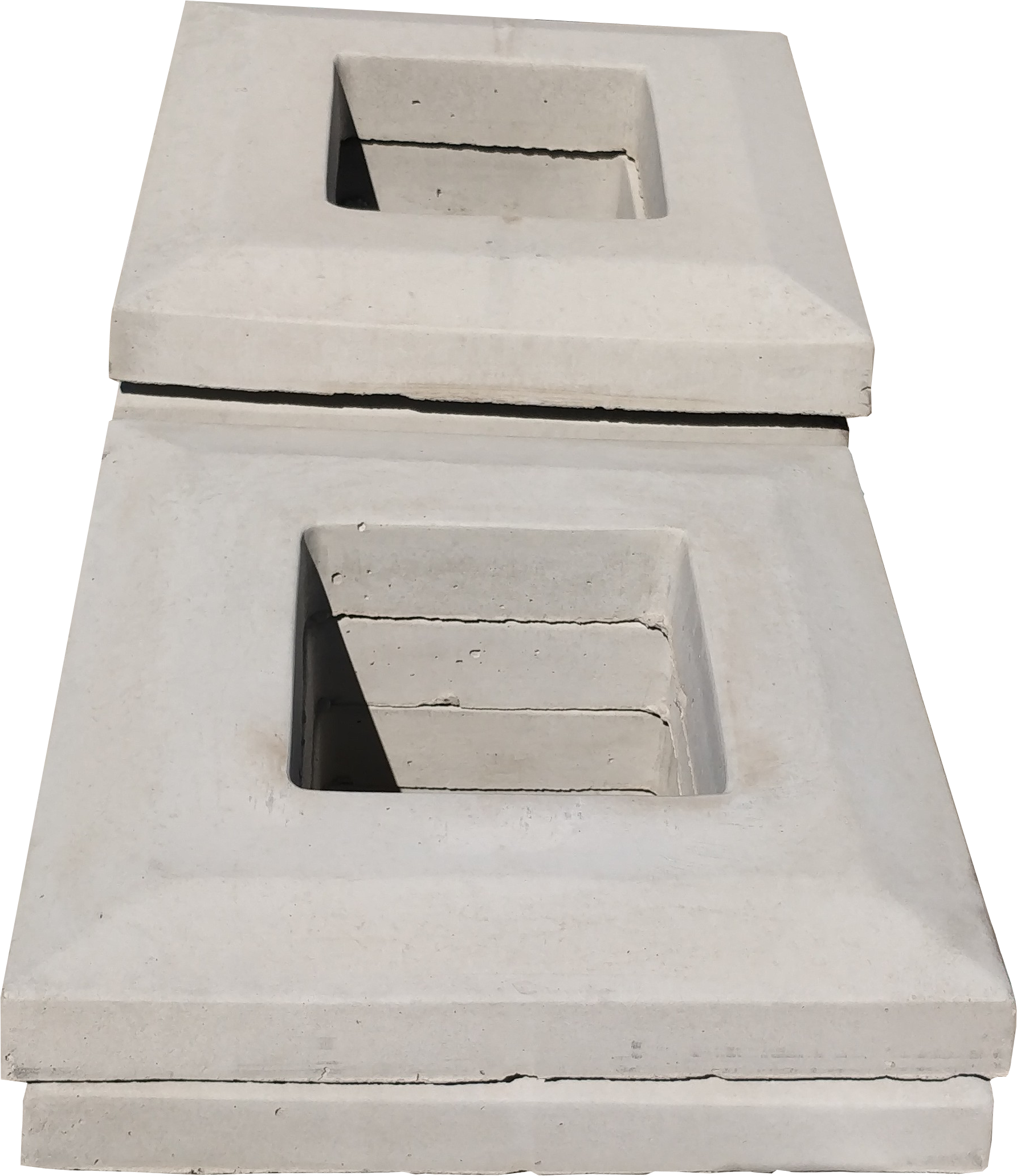

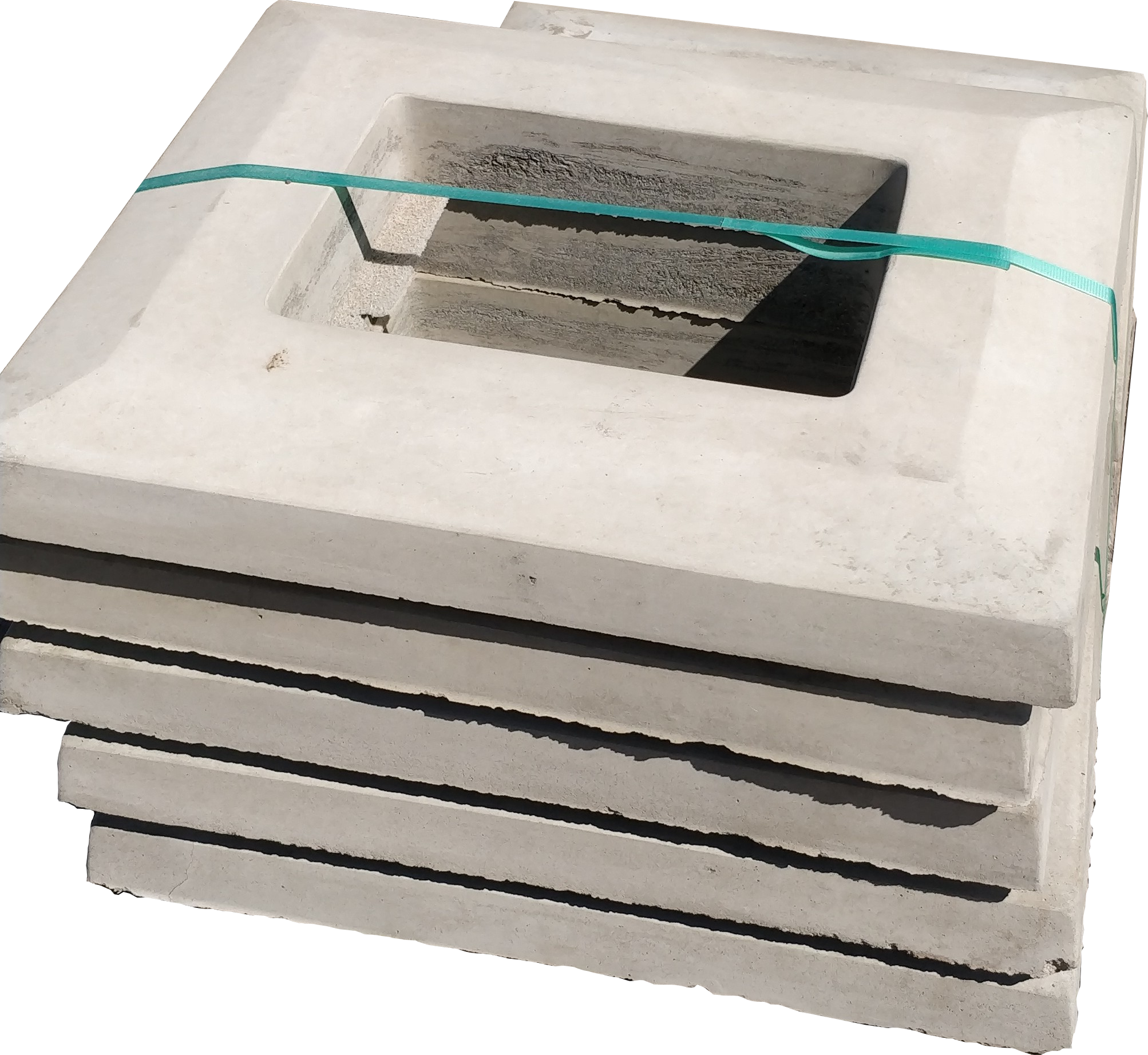

Chimney Caps
Chimney Caps
Product
Flue Size
Outside Dimensions
Chimney Cap
8” x 8”
21.75” x 21.73”
Chimney Cap
8” x 12”
21” x 25”
Chimney Cap
12” x 12”
25” x 25”
Misc.
Product Notes

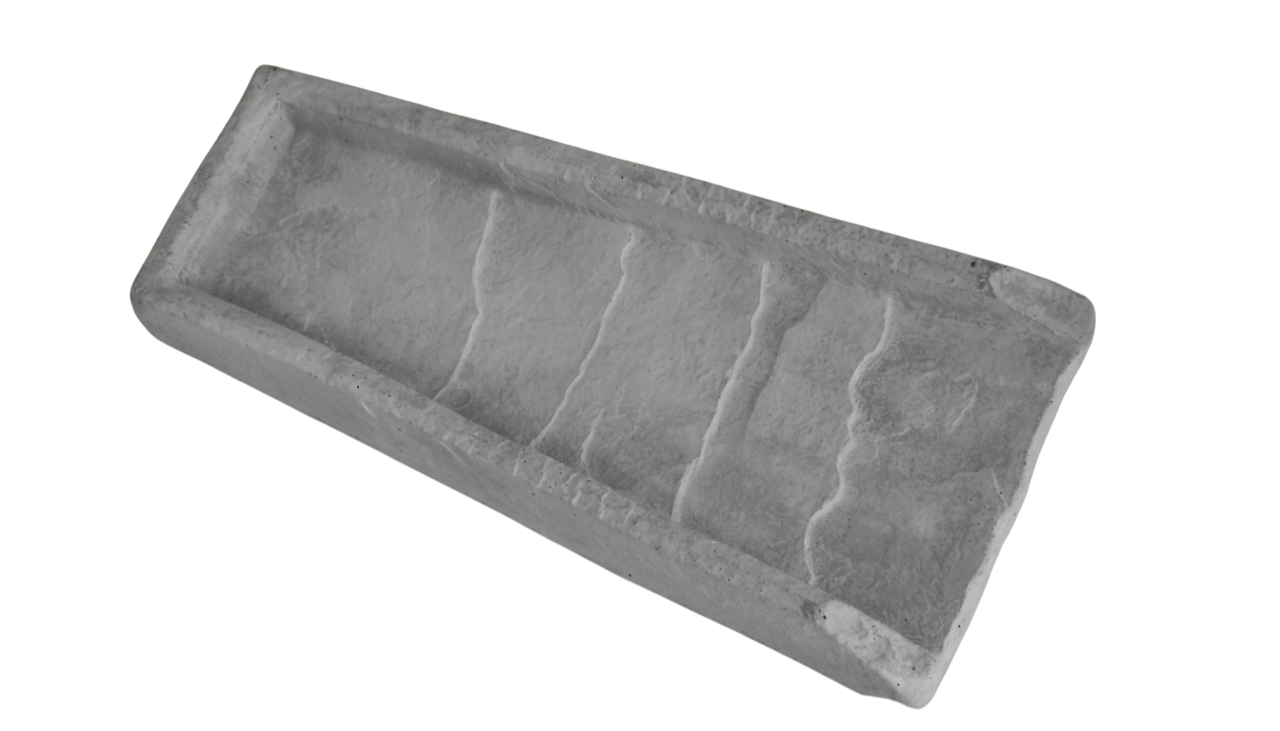

Precast Splash Pad (for under downspouts), in one size 30 inches long.

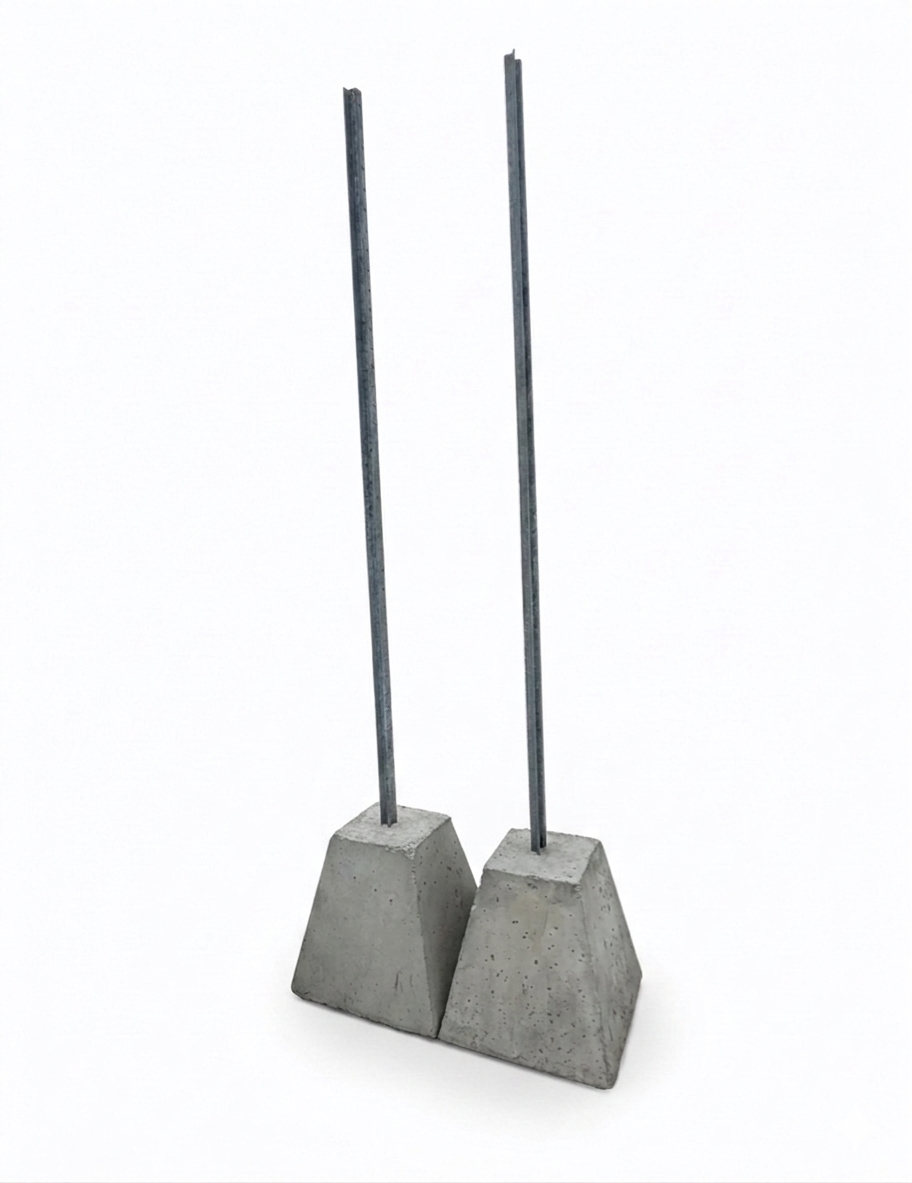

Precast Sign Base - Block with Post: 12" x 12" base • 18" x 18" base • 24" x 24" base

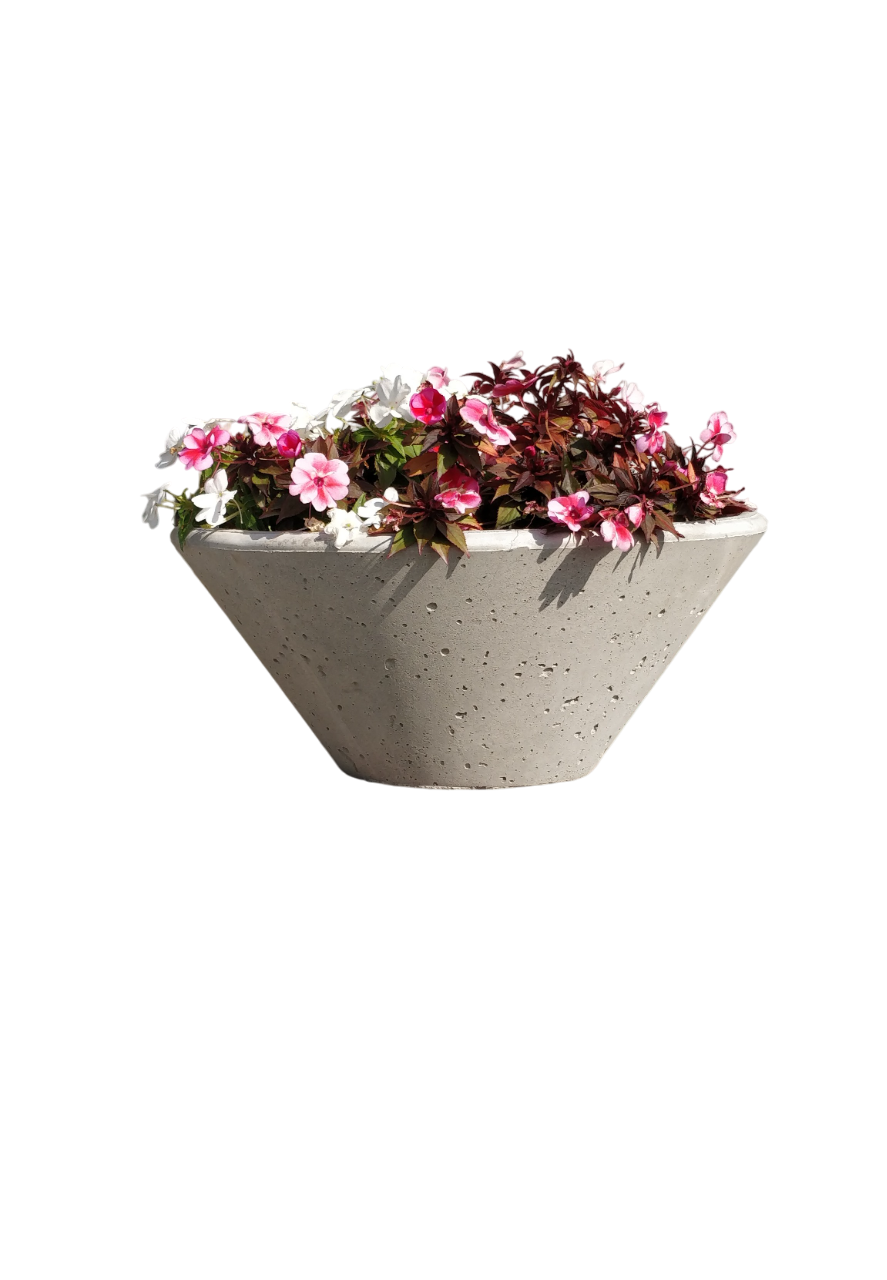

Flower Pots: Conal (24" upper dia, 11" base dia, 10" height) • Square (24" x 24" x 18" and 36" x 36" x 18")

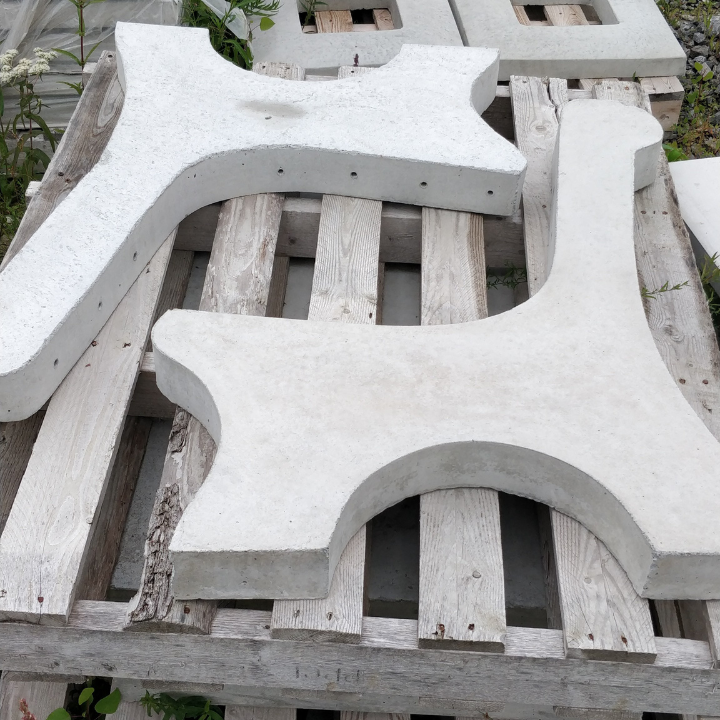

Concrete Bench Ends
Our precast concrete bench ends provide a durable, long-lasting foundation for outdoor seating. Designed for strength, stability, and low maintenance,
these heavy-duty supports are ideal for parks, trails, schools, municipal spaces, and commercial landscaping projects. Built to withstand Canadian weather,
our bench ends offer both functional performance and a clean, classic look.
